Prizma [DIY kit]
Prizma [DIY kit]
dual channel complex sequencer
Couldn't load pickup availability
![Prizma [DIY kit]](http://doboz.audio/cdn/shop/files/prizma_mkii_black_04.jpg?v=1779373323&width=1445)
Prizma is a versatile and powerful sequencer for Eurorack modular systems. A composition tool focusing on the creation of complex melodic and rhythmic progressions, utilizing the principles of controlled unpredictability, with the ability to determine the timing and location of randomness and the degree to which it influences your sequences. The module features 2 tracks ofCVandGATEoutputs which are driven by a 16-step sequencer, an auxiliary sequencer with its own clock divider, and further sub-circuitry that shapes the eventual output results.

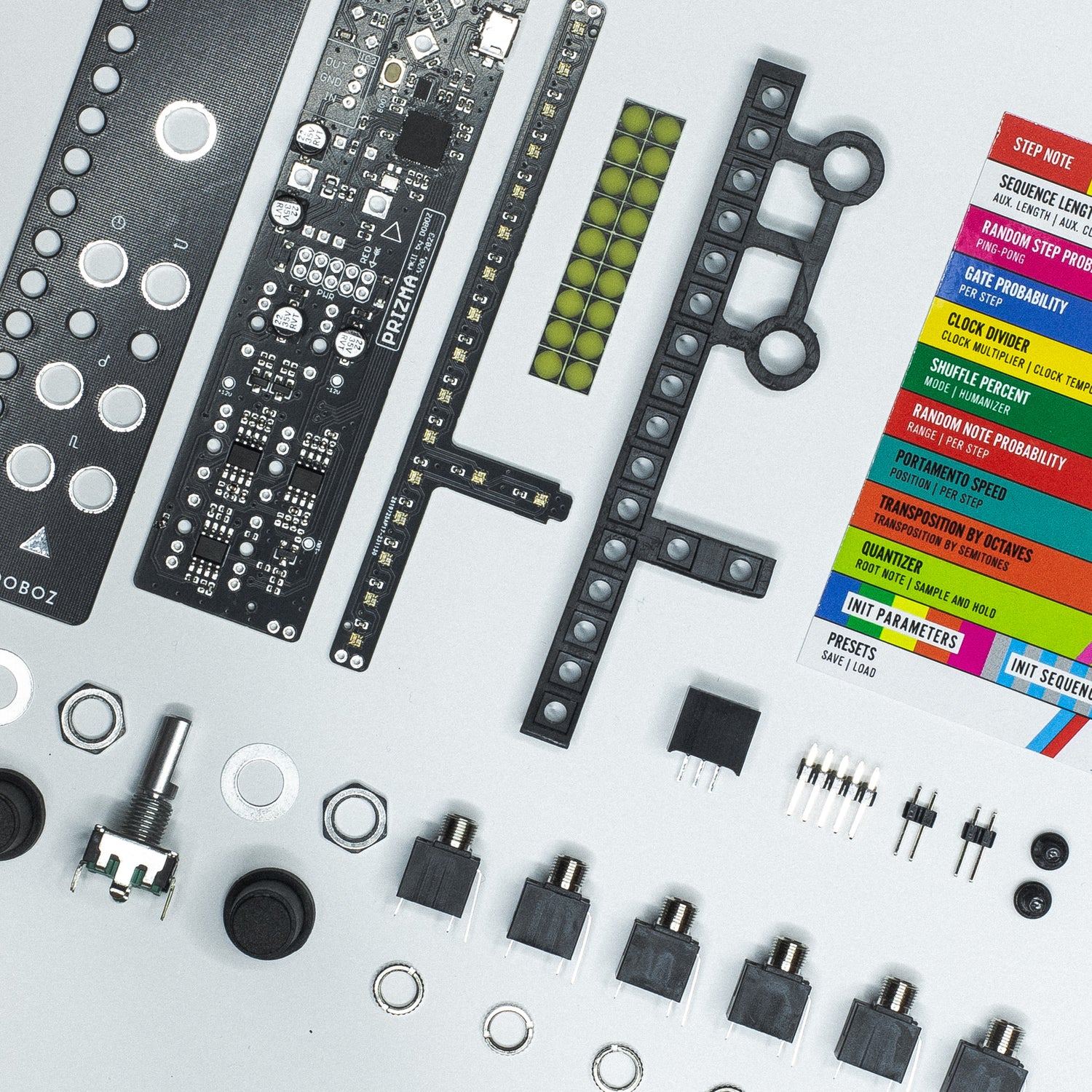

This complete DIY kit includes everything you need to assemble the module yourself: all through-hole components, front panel and a power cable. All surface-mount components come pre-soldered, so you only need to solder the connectors, pots, jacks, and other through-hole parts. A standard soldering iron, solder, and basic hand tools are all it takes.
Collapsible content
DOWNLOADS
TECH SPECS
Format: Eurorack (3U)
Width: 17hp
Depth: max. 25mm
+12V: 115mA
-12V: 12mA
PRODUCT SAFETY INFORMATION
Please read this safety guide before installation or use.
Important Notice & Intended Use
– This module is intended for adult users experienced in electronics and modular synthesis.
– The module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
– Use outside this scope may result in malfunction, damage, or safety risks.
General Warnings
Electrical Hazards:
– Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). – Incorrect voltage can damage the module and pose a safety risk.
– Never connect or disconnect the module while the Eurorack system is powered on.
– Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.
Heat Generation:
The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.
Sharp Edges:
The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.
Small Parts:
Contains small parts that could cause a choking hazard. Keep away from children and pets.
Compatibility:
This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.
Installation and Use
– Mount securely in a Eurorack case using the provided screws.
– Use only the included or manufacturer-recommended power cable.
– Connect only when the power is off.
– Follow the module’s user guide for instructions on operation. Do not exceed the input/output limits specified.
Environmental Safety
Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.
Liability Disclaimer
The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
