DVNA

Chord & texture synthesizer

€370,00 EUR

Sale Sold out

The first batch has sold out. Thank you all for the incredible interest! The 2nd batch will be available at the beginning of July. I appreciate your patience. Stay tuned!

View full details

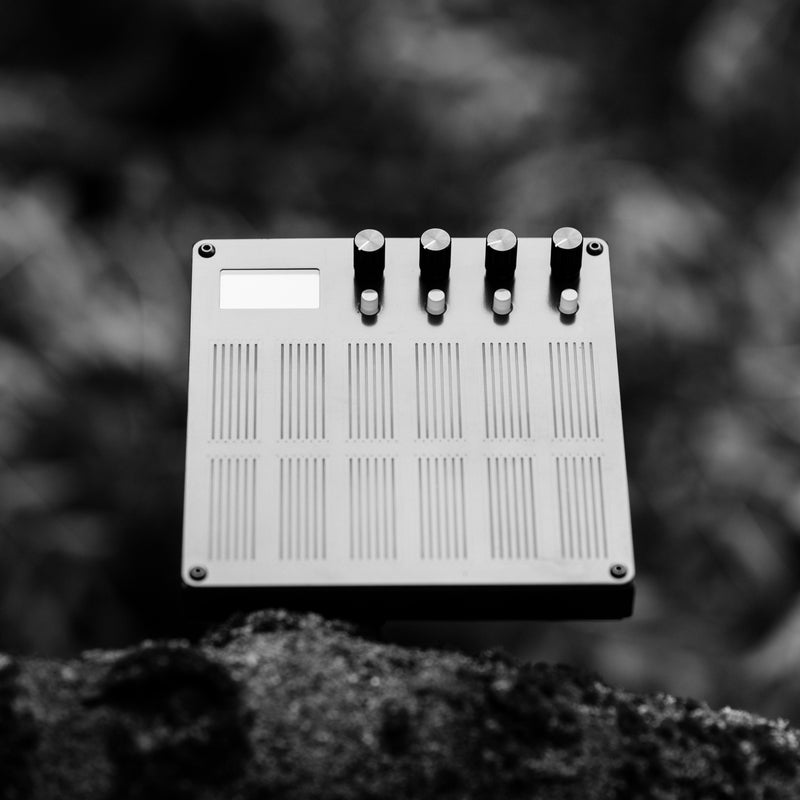

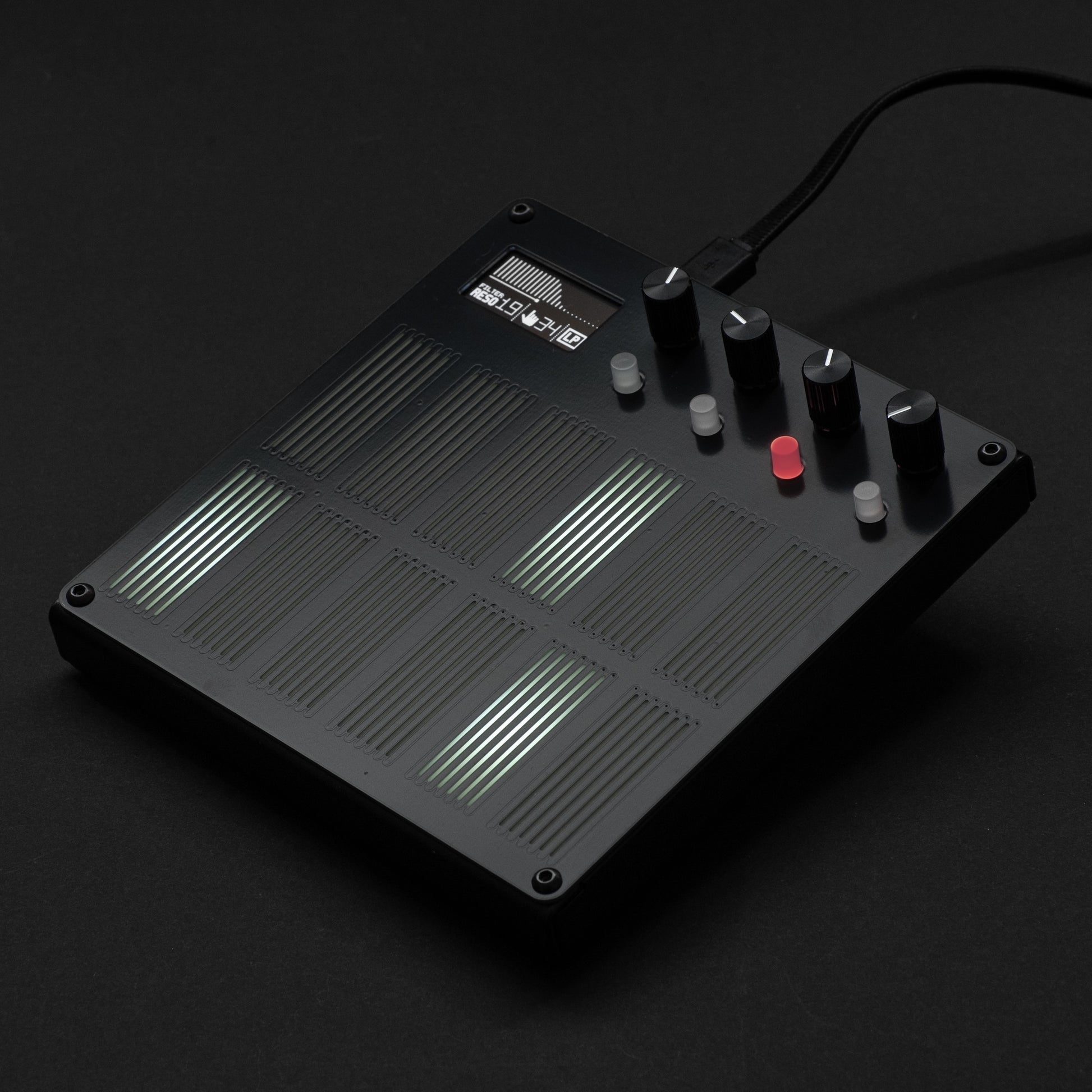

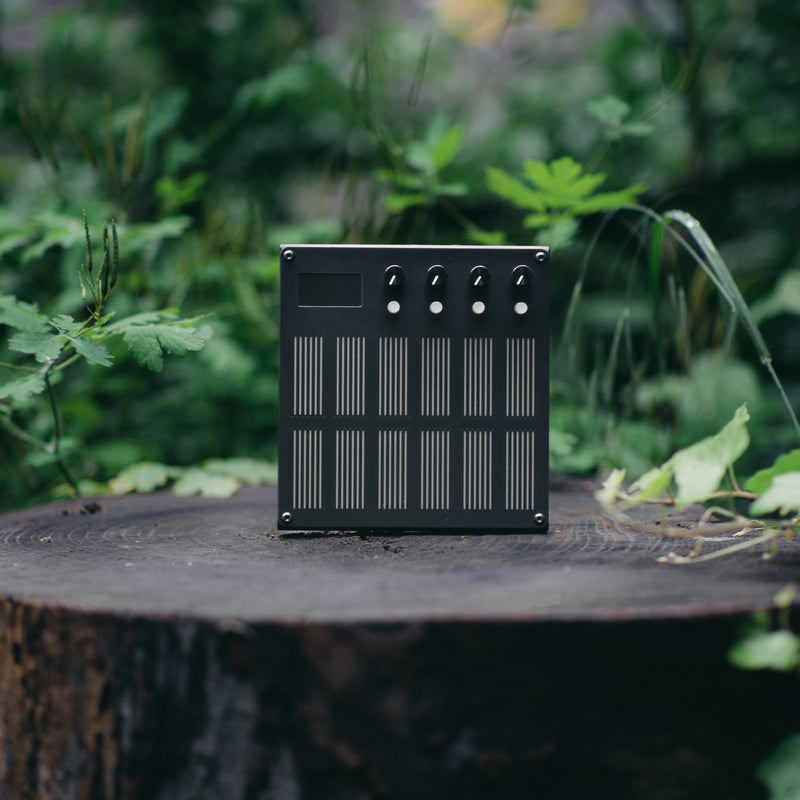

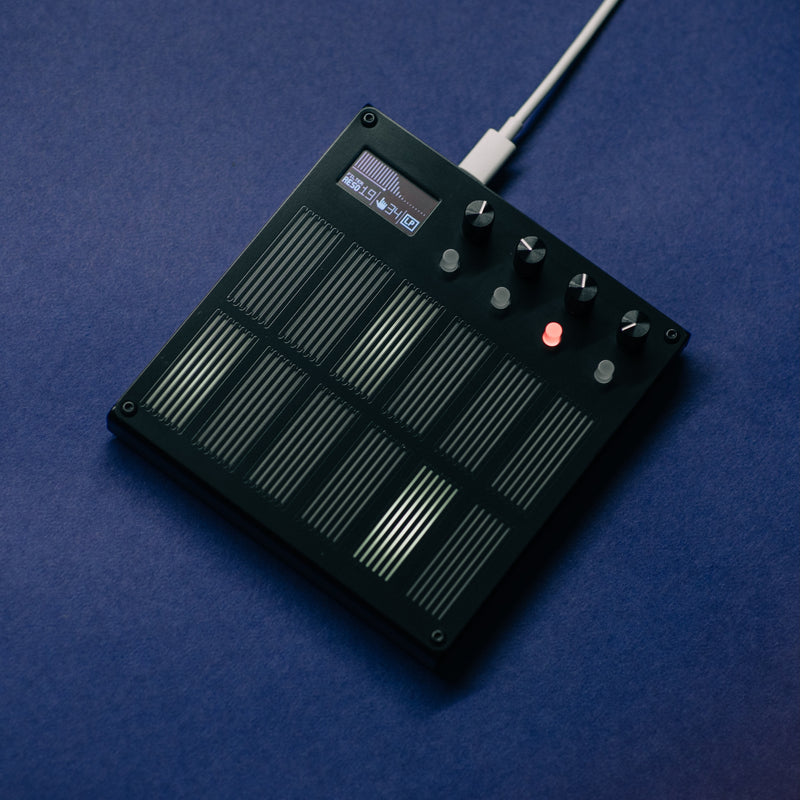

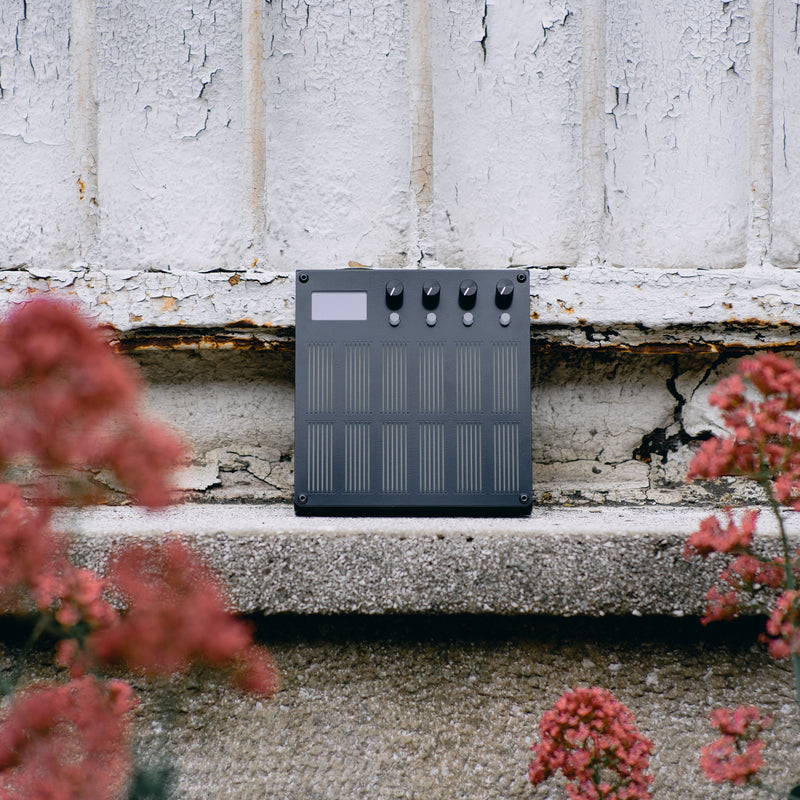

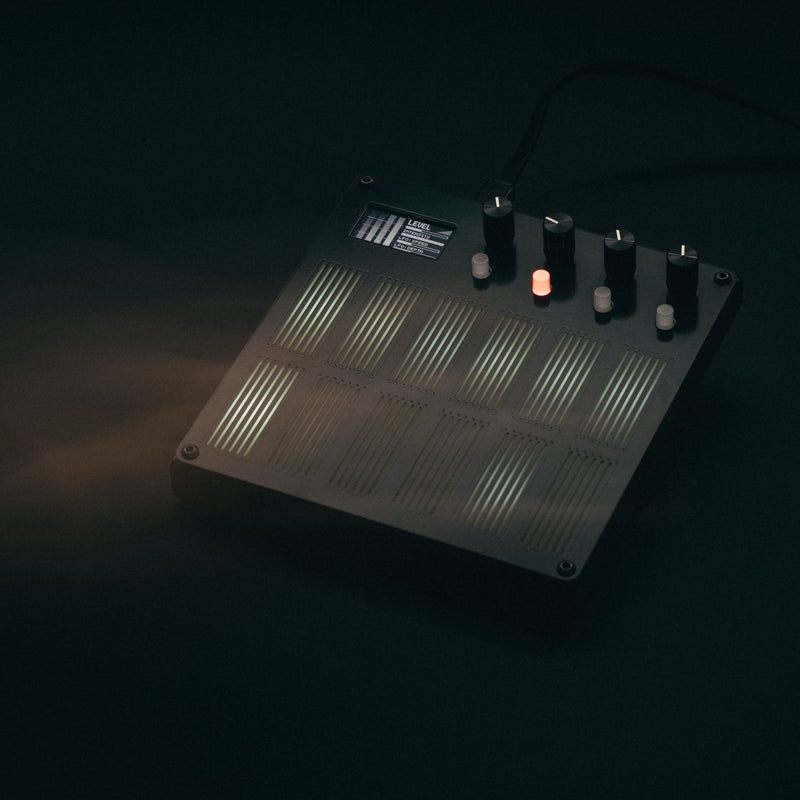

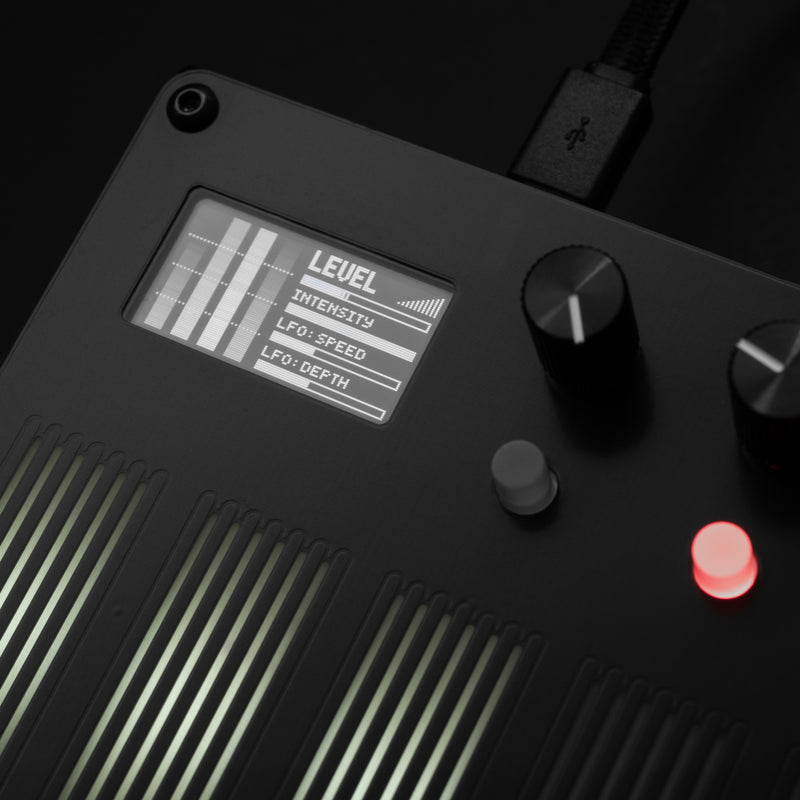

DVNA is a compact synthesizer built for creating rich harmonic textures with minimal effort. Play a single key and get a chord, or intervals of your choice across its four oscillators... monophonic input, polyphonic results.

A built-in note quantizer locks your pitch to any of 25 scales, while the tuning modes let you dial in everything from fixed chord voicings to free microtonal tuning. Oscillator mixing and stereo panning are controlled through morphing systems, so a single knob sweep transforms your entire mix at once. The signal then flows through a stereo multi-mode filter, overdrive, and a choice of reverb or delays.

The 12-key capacitive keyboard responds to finger contact area, generating a continuous pressure signal that can be routed throughout the instrument. DVNA also accepts MIDI over TRS, syncs to MIDI clock, and responds to MIDI CC for external control. 128 presets capture all parameters, keeping your favorite patches ready to recall instantly.

DOWNLOADS

FEATURES & TECH SPECS

4-oscillator subtractive synthesizer
Interval, chord, and free tuning modes
25-scale note quantizer with selectable root note
Stereo multimode filter: LP, BP, HP
Soft-clip overdrive
Dedicated LFOs for oscillator shape, filter cutoff, level morphing and panorama morphing
Stereo reverb or delay (one active at a time)
Bit crusher and decimator
12-key capacitive keyboard with pressure (contact area) sensing
128 presets (16 banks × 8)
MIDI input via TRS (Type A and Type B)
24-ppqn clock sync
14-bit hi-res MIDI CC support
Stereo line output (3.5mm TRS jack)
Stereo headphone output (3.5mm TRS jack)
USB-C power, <250mA @ 5V
size: 13,4×14,2×35 mm

PRODUCT SAFETY INFORMATION

Please read this safety guide before installation or use.

Important Notice & Intended Use
– This module is intended for adult users experienced in electronics and modular synthesis.
– The module is intended for installation in a Eurorack-compatible synthesizer system powered by ±12V and +5V.
– Use outside this scope may result in malfunction, damage, or safety risks.

General Warnings

Electrical Hazards:
– Ensure the power supply matches the module’s specified voltage and current ratings (refer to the product manual). – Incorrect voltage can damage the module and pose a safety risk.
– Never connect or disconnect the module while the Eurorack system is powered on.
– Wrong polarity can damage your module or system. Make sure the module is connected with correct polarity.

Heat Generation:
The module may generate heat during operation. Ensure proper ventilation within your Eurorack case to prevent overheating.

Sharp Edges:
The module’s faceplate and components may have sharp edges. Handle with care to avoid cuts or scratches.

Small Parts:
Contains small parts that could cause a choking hazard. Keep away from children and pets.

Compatibility:
This module is designed specifically for Eurorack-compatible systems. Connecting it to non-compatible systems may result in damage or malfunction.

Installation and Use
– Mount securely in a Eurorack case using the provided screws.
– Use only the included or manufacturer-recommended power cable.
– Connect only when the power is off.
– Follow the module’s user guide for instructions on operation. Do not exceed the input/output limits specified.

Environmental Safety
Dispose of the module, its components, and packaging in accordance with local electronic waste regulations.

Liability Disclaimer
The manufacturer or distributor is not responsible for any injury, damage, or malfunction resulting from improper installation, use, or modification of this product.
